QR code online automatic labeling machine

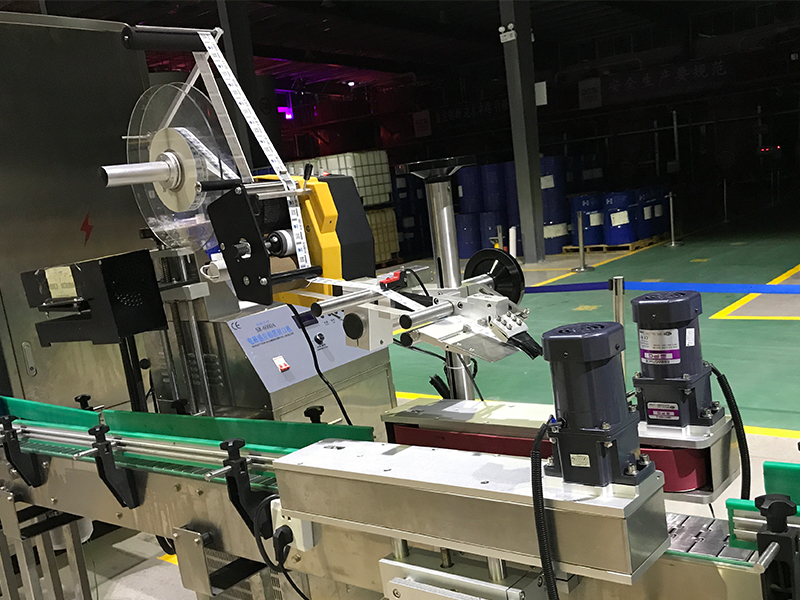

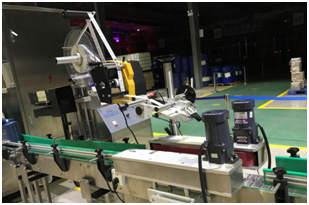

AK-V401DT two-dimensional code labeling machine can be conveniently and flexibly installed on the assembly line, automatically attaching two-dimensional code labels on the top or side of a single product or carton, and optionally installing a code reader, rejecting mechanism, etc. To realize the code assignment function of the two-dimensional code.

Technical Parameters:

· Feeder type: Swiss Collamat 6600 feeder

· Labeling speed: 5 - 300 pieces / minute (specifically related to the size of the sticker)

· Label size: width 10-90mm, length zui small 10mm

· Label roll zui large diameter: Ф300mm

· Label roll inner diameter: Ф76mm

· Labeling accuracy: ± 0.5 mm (excluding stickers and label errors)

· Marking speed: 30 m / min

· Power supply: 220V±5% 50/60Hz

Performance characteristics:

1. Easy and flexible installation, can be quickly installed on existing production lines or equipment.

2. The key component of the labeling machine is the feeder. The Colamat company in Switzerland is the main labeling machine and label manufacturer of Zui in Europe. The Swiss are famous for their sophisticated workmanship. The same reason, there are decades of production experience. The labeling machine produced by Collalmat is increasingly sophisticated and currently has distribution facilities in more than 60 countries. Its high speed, high stability and reliability are recognized by various countries in the world.

3. The role of the feeder is to pull the label so that the label is marked and attached to the object to be attached, and the key actuator for achieving this action is the drive roller. Collamat labeling machine exclusively uses the driving roller made of gold steel sand material, its friction is very good, ensuring that the label movement process does not slip; another characteristic of gold steel sand is very wear-resistant, overcoming the use of rubber or metal Wear and tear occur when the label slips and runs off.

4. The control part of the feeder adopts a 16-bit processing unit with fast calculation speed. The line adopts multi-layer wired surface mount technology, the power supply part adopts military grade transformer, and the drive motor is made in Germany, which can ensure its stability and reliability.
