200 kg barrel smart labeling machine

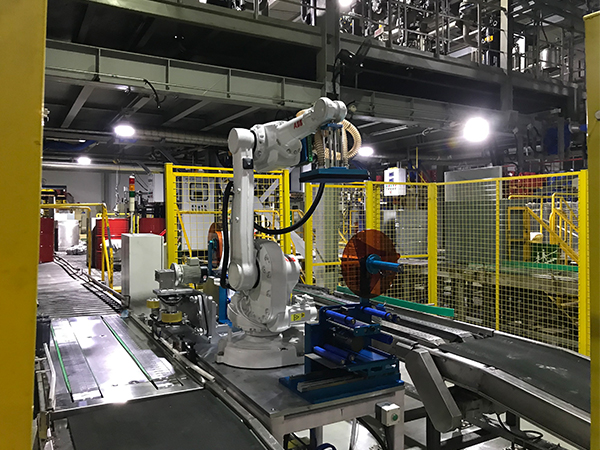

AK-AR1600A 200KG barrel intelligent labeling machine is suitable for chemical, grease and other industries, intelligent labeling on the top and side of 200KG barrel. The machine adopts industrial robot intelligent labeling, which can simultaneously attach three labels on one barrel; rotary positioning device can detect the position of the barrel and accurately label the label; unique labeling system is designed for robot grabbing label design; independent control Multi-cavity suction cups for a wide range of label sizes.

Technical Parameters:

· Labeling speed: 2 barrels / minute

· Labeling accuracy: ±2.0mm (excluding stickers and label errors)

· Label size: width 10 ~ 300mm, length 10 ~ 500mm

· Label roll inner diameter: Φ42mm/Φ76mm

· Label roll outer diameter: zui large Φ400mm

· The size of the object to be attached: diameter Φ300 ~ 800mm

· Dimensions: L2500×W1500×H2000 (mm)

· Weight: about 350kg

· Power supply: 220V±5% 50/60Hz

Performance characteristics:

1. The use of industrial robot intelligent labeling to achieve unmanned operation, avoiding the damage caused by liquid splashing on the human body.

2. Achieve smart labeling, only need to switch program mode when replacing products, no need for cumbersome mechanical and electrical adjustments.

3. The working status and fault of the machine have reminder warning function. When the system runs, stops and there is a fault, the system records and stores the occurrence and end of the event (fault cancellation), which makes operation and maintenance more convenient.

4. With memory storage program function, it can store 50 sets of parameters and can name different programs.

5. With the label exhaustion stop function, the machine will automatically stop when the label is used up, thus effectively preventing the leakage.
