Tag counter

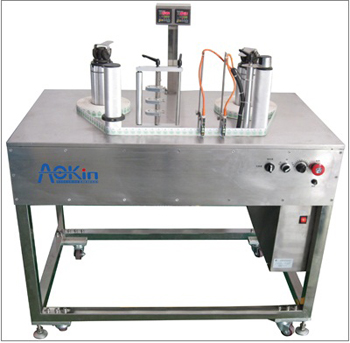

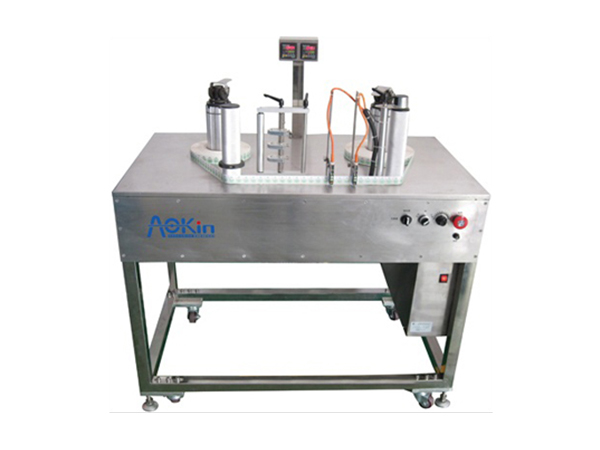

Device Name: Label Wrapper AK - 400DR

Equipment use: It is suitable for the winding, counting and coding of the label wound into a disk shape. It can also be equipped with a bar code reader to detect various barcodes such as one-dimensional/two-dimensional on the label.

Performance parameters:

· zui large label roll diameter: Φ400mm

· zui large label roll height: 200mm

· zui small label roll height: 12mm

· Collection paper tube inner diameter: Φ76mm

· Swing speed: 5 ~ 70m / min

· Power: 400W

· Power supply: AC220V 50/60Hz

Equipment characteristics:

· Imported motor, inverter control, keeping the speed stable and reliable

· It can reverse the label, forward count, reverse to restore the label to the pre-rewind state, without affecting subsequent applications.

· Electric eye detection trigger counter, accurate and reliable counting

· Double counting system, more accurate counting

· The label roll is fixed by cam structure, which is simple and convenient. It is suitable for the environment where there is no air source in the warehouse.

· Label winding speed is fast, zui is 70 meters / minute

· The winding tension is adjustable, the structure is simple, and the rotating handle can be

· Automatic shutdown when the label is broken or the label is wound

· Equipped with an encoder device, the winding process can be switched in either constant linear velocity or constant angular velocity. The constant line speed function can be adapted to later extended functions, such as detecting the bar code on the label, and printing on the label.
