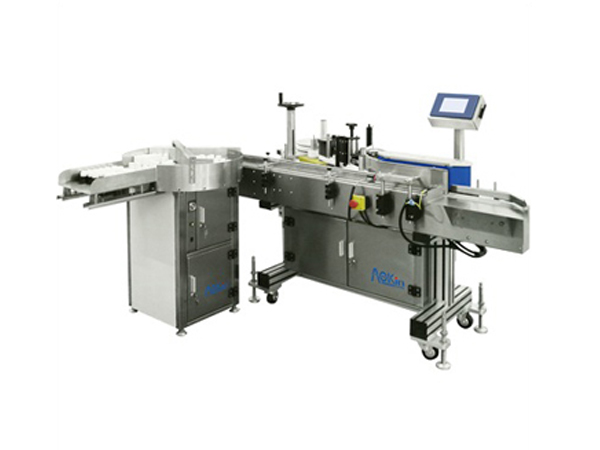

Vertical high speed round bottle labeling machine

AK-V101DB vertical high-speed round bottle labeling machine is mainly used for high-speed labeling of medicine, chemical, food, health care products and other small round bottles in light industry. It can be equipped with inkjet printer, printing machine and thermal transfer printing. The code machine synchronously prints the production date, batch number, expiration date and other information during labeling, and can be used in a single machine, or in a batching tray or a production line.

Technical Parameters:

· Feeder type: Swiss Collamat 6600

· Labeling speed: 20~300 bottles/min (depending on the size of the sticker and the label)

· Labeling accuracy: ±1.0mm (excluding stickers and label errors)

· Marking speed: 3~30m/min

· Size of the object to be attached: diameter Φ16～30mm

· Dimensions: L2500×W1050×H1710 (mm)

· Weight: about 190kg

· Power supply: 220V±5% 50/60Hz

Performance characteristics:

1. Exclusive use of the vertical roller chain conveyor belt (three-sided positioning) labeling structure, it is not easy to pour the bottle, the standard is correct.

2. The conveyor belt, the bottle belt and the bottle roller chain are driven by a separate motor and can be frequency-controlled to make the labeling more reliable.

3. The working status and fault of the machine have reminder warning function. When the system runs, stops and there is a fault, the system records and stores the occurrence and end of the event (fault cancellation), which makes operation and maintenance more convenient.

4. With memory storage program function, it can store 50 sets of parameters and can name different programs.

5. With the label exhaustion stop function, the machine will automatically stop when the label is used up, thus effectively preventing the leakage.
