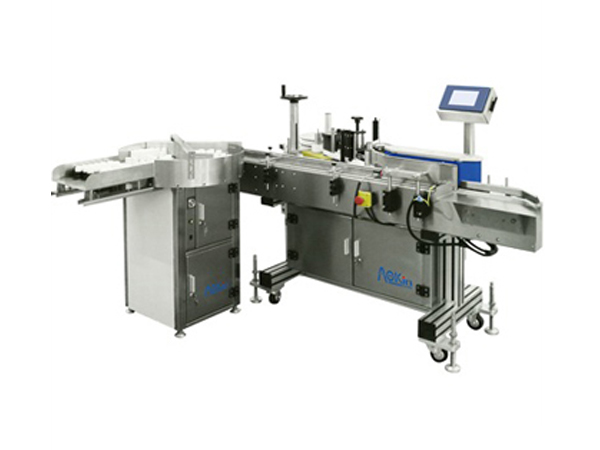

Smart vertical round bottle labeling machine

AK-V101PB vertical round bottle labeling machine is mainly used for pharmaceutical, chemical, food, alcohol and other light industry industries. Φ16～90mm round bottle products can be used for full-wound, partial-wound, fixed-point stickers, etc. Standard method.

Technical Parameters:

· Feeder type: Swiss Collamat 6600

· Labeling speed: 20~200 bottles/min (depending on the size of the sticker and the label)

· Labeling accuracy: ±1.0mm (excluding stickers and label errors)

· Marking speed: 3~30m/min

· Size of the object to be attached: diameter Φ16～90mm

· Dimensions: L1700 × W1000 × H1230 (mm)

· Weight: about 190kg

· Power supply: 220V±5% 50/60Hz

Performance characteristics:

1. Wide application range, Φ16～90mm round products can be completed by one machine (larger diameter bottles can be customized).

2. With FUZZY fuzzy calculation function. The user only needs to input the production quantity and pass the material over the conveyor belt, and the system will automatically adjust the proper running state. The parameters such as measuring electric eye, label electric eye, and pre-marking do not need manual adjustment.

3. The working status and fault of the machine have reminder warning function. When the system runs, stops and there is a fault, the system records and stores the occurrence and end of the event (fault cancellation), which makes operation and maintenance more convenient.

4. With memory storage program function, it can store 50 sets of parameters and can name different programs.

5. With the label exhaustion stop function, the machine will automatically stop when the label is used up, thus effectively preventing the leakage.
