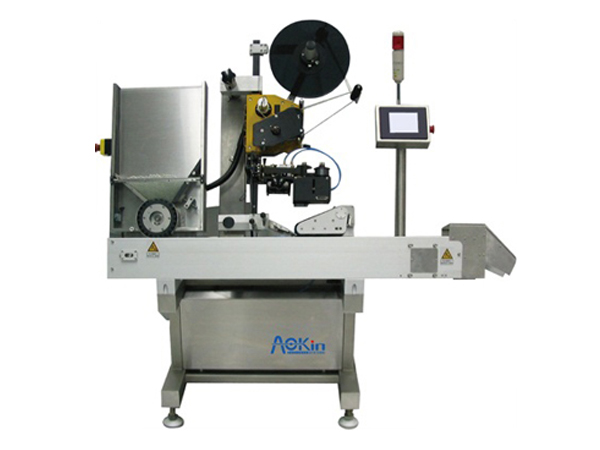

Horizontal round bottle labeling machine

AK-H201PB horizontal round bottle labeling machine is mainly used for rapid automatic labeling and printing on oral liquid bottles, ampoules, vials and blood collection tubes. The machine has the advantages of high stability and durability. A number of patented technologies and world-famous device components not only have the characteristics of accurate standards, high precision and advanced functions, but also can be combined with the hot foil printing machine to achieve continuous and accurate batch printing. It can be used in stand-alone mode or automatically connected to the input machine, cartoning machine and packaging machine.

Performance parameters:

· Labeling speed: 300 bottles / minute (depending on the size of the sticker and the label)

· Conveyor speed: 3~18 m/min

· Labeling accuracy: ±0.5mm

· Marking speed: 3~30m/min

· Dimensions: L2000 × W720 × H1800 ( mm)

· Weight: about 280kg

· Power supply: 220V±5% 50/60Hz

Equipment characteristics:

· The most important part of the labeling machine is the feeder. We compare the feeder to the heart of the labeling machine. The labeling device of the labeling machine provided by our company is made by Coollamat of Switzerland.

· The horizontal round bottle labeling machine uses a split bottle to divide the material.

· A tilted stepped roller chain conveyor belt.

· The automatic detection of the jump bottle can be installed in front of the labeling head. When the bottle runs on the conveyor belt or the bottle is on the conveyor belt, the machine will automatically stop to avoid the broken bottle (optional).

· Bottle-type device: The bottle is automatically pressed against the step during the rotation process to ensure the consistency of the bottle position, thus ensuring high labeling accuracy.

· The whole electronic control system is controlled by PLC and operated by touch screen. It is easy to operate and intuitive. It has rich help function and fault display function.

· With memory storage program function, it can store 50 sets of parameters. To change different specifications or use different production capacities, you only need to adjust different parameters without having to adjust again, which greatly improves work efficiency.

· All materials of the equipment meet the requirements of GMP, and the metal materials used are stainless steel or aluminum alloy.
