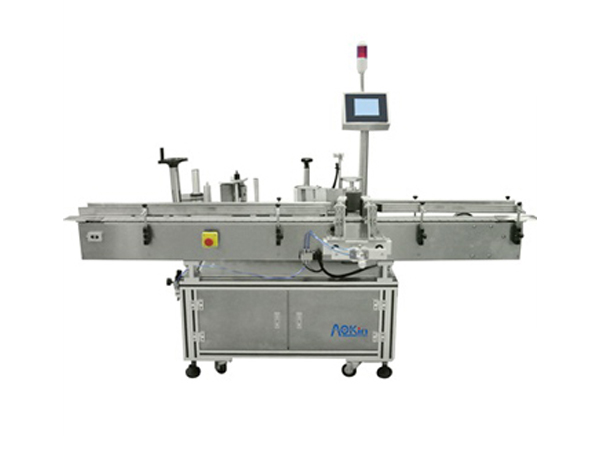

Vertical round bottle positioning labeling machine

Vertical round bottle positioning labeling machine AK-V101B is mainly used in round bottles/conical bottles of medicine, chemical, food, alcohol and other light industry. It can be used for full winding, partial winding, fixed point stickers, etc. Labeling method.

Technical Parameters:

Feeder type: imported feeder

Marking speed range: 3~50m/min

Labeling speed: 10~70/min (the specific value is related to the size of the sticker and the label)

Labeling accuracy: ±1. 0mm (excluding stickers and label errors)

Gas source: 04~0.7Mba

Dimensions: L2000mm × W1100mm × H1780mm

Power and power : 220V 50/60Hz

Features:

1. The most critical part of the labeling machine is the feeder. We compare the feeder to the heart of the labeling machine. The labeling machine provided by our company adopts the feeder of COLLAMAT of Switzerland.

2. The positioning structure is convenient and reliable, and can fit the bottle taper.

3. All control operations are performed on the touch screen, which is simple and straightforward.

4. The working status and fault of the machine have reminder warning function. When the system runs, stops and there is a fault, the system records and stores the occurrence and end of the event (fault cancellation), which makes operation and maintenance more convenient.

5. Electrical accessories are selected from well-known brand products, with stable performance and reliable equipment.
