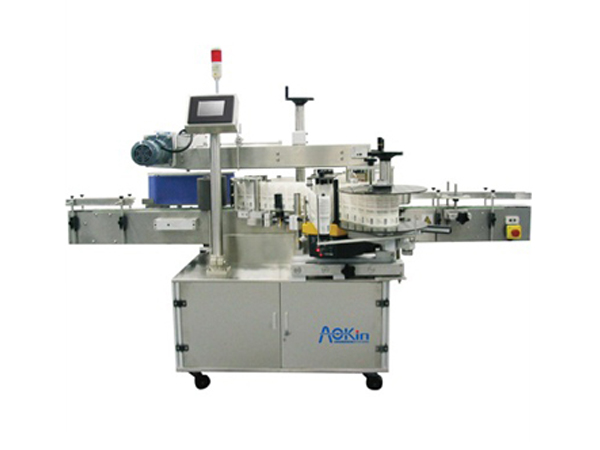

Double side bottle labeling machine

The AK-V132TB double-sided roll labeling machine is mainly used for automatic labeling of sides or circles of flat bottles, square bottles and round bottles in the fields of grain, oil, daily chemicals and food.

Performance parameters:

· Labeling speed: 200 bottles / minute (depending on the size of the sticker and the label)

· Labeling accuracy: ±1.0mm

· Marking speed: 3~30m/min

· Dimensions: L2600×W1760×H1750 (mm)

· Weight: about 400kg

· Power supply: 220V±5% 50/60Hz

Equipment characteristics:

· The most important part of the labeling machine is the feeder. We compare the feeder to the heart of the labeling machine. The labeling device of the labeling machine provided by our company is made by Coollamat of Switzerland.

· Can be completed on one machine: labeling of three types and multiple specifications of bottles, that is, not only the side of the square bottle and the flat bottle, but also the circumference of the round bottle.

· Elastic out-of-head structure, especially suitable for material labeling with large curvature, which can perfectly fit the arc and achieve perfect labeling effect.

· Simple adjustment and wide application range: You can switch between the roll and the side stickers with a small amount of adjustment and replacement of some parts.

· Adopt vertical labeling method, add top pressure device to ensure the stability of the attached object; use correction mechanism to ensure the centering of flat bottle or square bottle; greatly improve the labeling accuracy.

· Adopt linear continuous feeding bottle and intermittently send the main body of the label. After the bottle label is joined, the brush and the sponge wheel are supported to ensure that the label is firmly flat.

· The speed setting of conveyor belt, top belt and righting mechanism can be adjusted steplessly, and the speed of marking can be matched to make the labeling perfect without wrinkles.

· With top belt with elastic structure, it can adapt to the bottle with high error.

· The whole electronic control system is controlled by PLC and operated by touch screen. It is easy to operate and intuitive. It has rich help function and fault display function.
